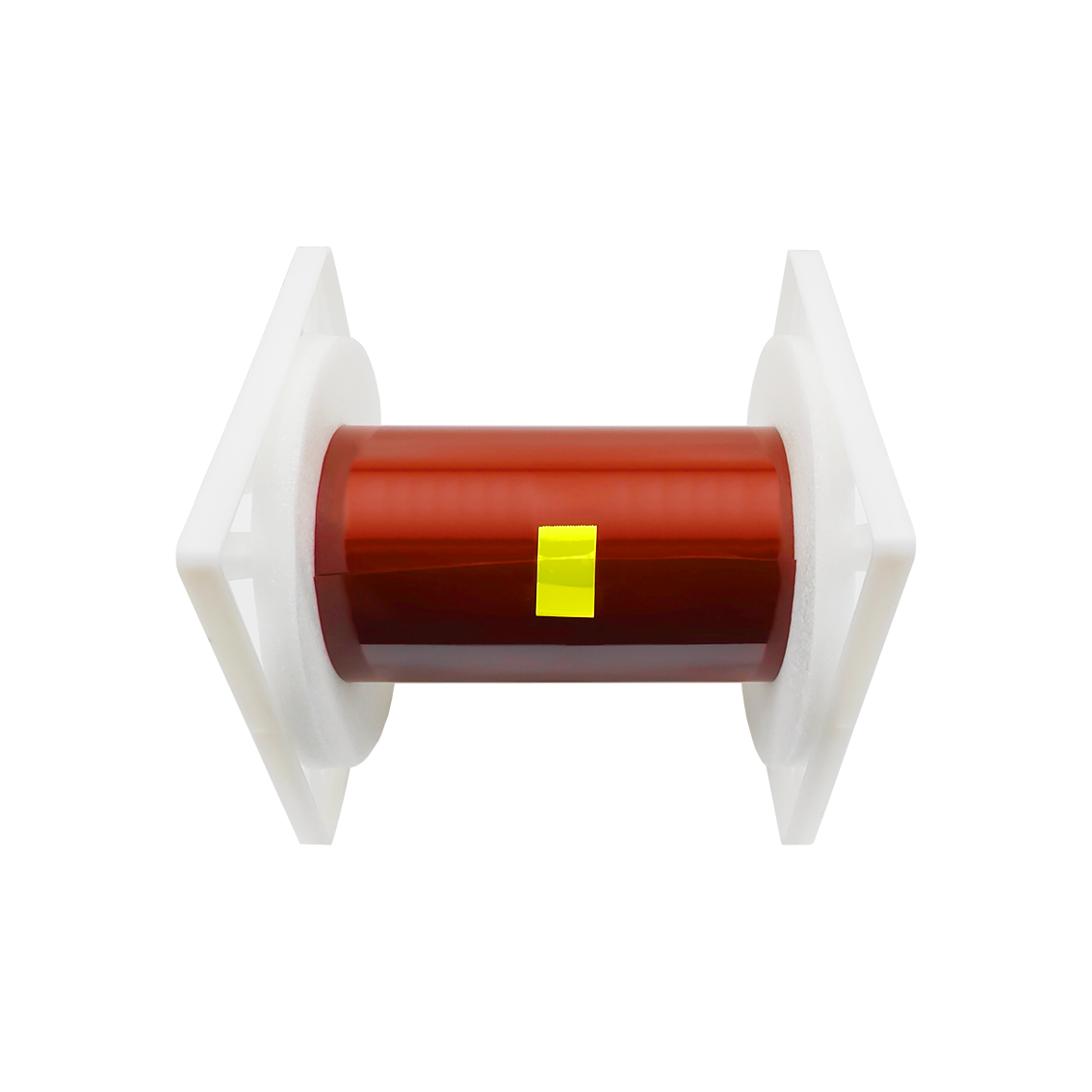

Die-Cut PI Stiffeners Customized per Drawings
¥8,888.00 CNY
Sale price
¥8,888.00 CNY
Regular price

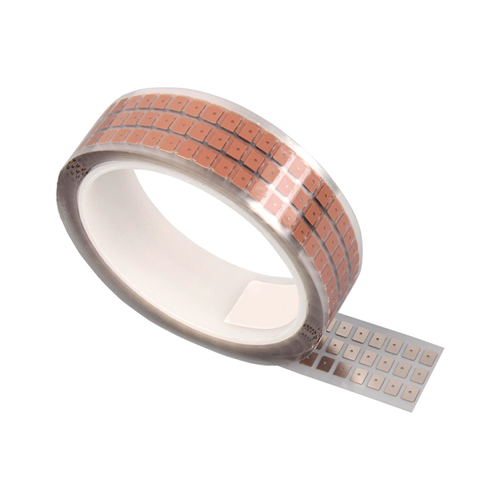

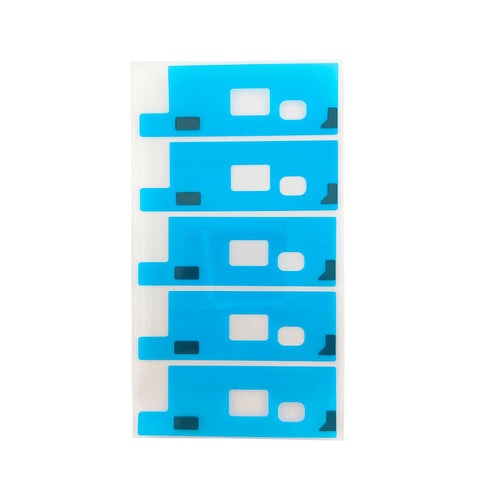

Our precision die-cut PI stiffeners are designed specifically for reinforcement and assembly applications of flexible printed circuit boards (FPCs). We manufacture custom PI stiffener solutions directly from your specifications and technical drawings, ensuring that dimensions, mechanical performance, and material thickness fully meet your production requirements. Each stiffener is custom-cut to address your specific needs for reinforcement, dimensional stability, and insulation protection, ensuring a perfect fit to your production line.
▎Key Benefits:
1. Customized Process
Based on your drawings or specifications, we provide custom die-cutting with precise geometric shapes and tight tolerances. Our advanced cutting processes handle everything from simple shapes to complex patterns, ensuring every piece matches your exact requirements.
2. Abundant raw materials
We offer a wide selection of high-quality PI materials from leading international suppliers. Our material sourcing covers various thicknesses, grades, and surface finishes, giving you full flexibility in material selection to match your specific application needs.
3. Excellent product performance
Our PI stiffeners deliver excellent mechanical support and dimensional stability for FPC assembly. We offer high-temperature resistant materials suitable for SMT and reflow soldering processes. Each product features uniform thickness, consistent mechanical performance, and clean edges for efficient application.
4. Fast delivery time
Samples can be delivered quickly by air within 7-14 business days. Delivery time is short for small to medium batch production; minimum order quantity depends on specific circumstances.
▎Application areas:
1.FPC reinforcement and stiffening
2.Connector and component mounting areas on FPCsy
3.Camera module mounting
4.Batteries and connector accessories in consumer electronics products
▎Custom Order Process:
1.Submit the drawings
2.Obtain Official Quotation
3.Place Order
4.Obtain Samples(Optional)
5.Manufacture
6.Pack & Delivery
Ideal for OEMs, contract manufacturers, and electronics assemblers in need of reliable, specification-compliant PI stiffener solutions. Please submit your technical drawings and material requirements, and we will provide you with a detailed quote.
Custom Order Process
From your drawing to your door — simple, transparent, reliable.
01
Step One
Submit the drawings
Provide drawings and detailed specifications to confirm custom requirements. We support various professional formats, including DXF and PDF. Upon receipt, we will review the request.
02
Step Two
Obtain Official Quotation
We will provide a product quotation within 1 to 2 business days. The quote will be calculated based on material type, dimensions, shipping address, and order quantity.
03
Step Three
Place Order
After receiving the product quote, please review and confirm it. After the order is placed on the website, we will begin production immediately and keep you updated on the delivery schedule.
04
Step Four
Obtain Samples（Optional）
If you have uncertainty regarding material compatibility or suitability, you may order a small batch of samples for testing prior to full production. You can evaluate the product's adhesion, dimensions, and performance in actual applications.
05
Step Five
Manufacture
Upon order confirmation, we will initiate the production process. Throughout the entire manufacturing process, we will strive to meet the customer's product quality standards.
06
Step Six
Pack & Delivery
Completed products will be carefully packaged and shipped via international express carriers such as DHL or FedEx (air freight), or by ocean freight. We will provide shipment tracking services to ensure your order arrives safely and on time.
